BLK360 Base

$18,500.00

Description

See the Possibilities with the Leica BLK360

The Leica BLK360 imaging laser scanner and Autodesk ReCap Pro for mobile simplify the way you document, design, and measure.

The BLK360 allows you to capture reality at the push of a button. The BLK360 imaging laser scanner is the result of uncompromising dedication to a minimalist aesthetic and the simplification of reality capture and features the newest, integrated thermal camera technology. Its shell is comprised of sleek, matte black anodized aluminum. A focus on premium materials was adhered to throughout the project. The mirror is comprised of gold coated, polished titanium. The laser scanner is completely wireless; data is transferred via WiFi and powered by a rechargeable lithium ion battery.

The BLK360 delivers one-button scanning in a simple and elegant package of uncompromising quality. New features such as thermal imaging bring a whole new dimension to your data while the miniaturized package allows you to bring the power of scanning to projects you never thought possible.

The BLK360 represents the confluence of art and engineering.

• Fast image and point cloud processing

• Lightweight, portable and easy to carry around

• Easy to use one-button scanning

• Enhanced connectivity and collaboration capabilities with cloud sync

• Two-in-one 360º image documentation and laser scan data

• Reality capture data integration with Autodesk’s design solutions

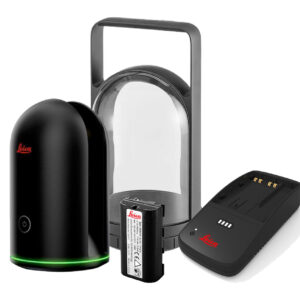

Includes:

• Leica BLK360 Laser Scanner

Transport Hood

GEB212 Lithium-Ion Battery

• GLK312 Battery Charger

• Global Adapters

• 1 year subscription to ReCap Pro with advanced support

• ReCap Pro licenses come standard with access to ReCap Pro for mobile

• FREE Pelican Case 1510 for Easy Transport

Tablet Requirements:

• iPad Pro 12.9″ or 10.5″

• Recommended 256 GB

360 Imagery

When initiating a scan, the BLK360’s three 5 megapixel cameras combine to capture a slice of a full dome image. The BLK360 rotates ~33° and the three cameras capture the next slice. These images are stitched together to create a full dome, 360°Hz x 300°V image.

Memory

The BLK360 comes ready to work, even if you forget to charge your iPad Pro. In autonomous mode, the BLK360’s onboard memory will store up to 100 full reality-captures: imagery, laser point cloud, and infrared panorama. When connected to an iPad Pro, your storage limit is only the amount of memory on your tablet.

Range

Measuring range for any laser scanner depends on having a somewhat reflective surface. The BLK360 is spec’d to work in the range from 60 cm out to 60 meters (2′ – 200′). As a rule of thumb, the laser reflects better off light-colored surfaces. The specifications are based on an “albedo” of 78%, similar to a light-colored wall.

Resolution

The BLK360 can be set to capture more or fewer measurement points based on the requirements of the task at hand.

• Low = 1 measurement every 20 mm (0.8″) in Hz and V

• Medium = 1 measurement every 10 mm (0.4″) in Hz and V

• High = 1 measurement every 5 mm (0.25″) in Hz and V

A high-res scan easily captures between 50 – 80 million points in 3 minutes and be over 1 GB.

Additional information

Weight25.52 lbs
Dimensions12.71 × 18.13 × 12.5 in

Specifications

• Housing: Black Anodized Aluminum

• Dimensions: Height: 165 mm, Diameter: 100 mm

• Weight: 1 kg

• Transport Cover: Hood with Integrated Floor Stand

• Mounting Mechanism: Button-Press Quick Release

• Stand-Alone Operation: One-Button Operation

• Remote Operation: iPad app, Apple iPad Pro 12.9”/iOS 10 or later

• Wireless Communication: Integrated Wireless LAN (802.11 b/g/n)

• Internal Memory: Storage for > 100 setups

• Instrument Orientation: Upright and Upside Down

• Battery Type: Internal, Rechargeable Li-Ion Battery (Leica GEB212)

• Capacity: Typically >40 Setups

• Distance Measurement System: High Speed Time of Flight Enhanced by Waveform Digitizing (WFD) Technology

• Laser Class: 1 (in accordance with IEC 60825-1:2014)

• Wavelength: 830 nm

• Field of View: 360° (horizontal) / 300° (vertical)

• Range: min. 0.6 – up to 60 m

• Point Measurement Rate: up to 360’000 pts/sec

• Ranging Accuracy: 4mm @ 10m / 7mm @ 20m

• Measurement Modes: 3 User Selectable Resolution Settings

• Camera System: 15 Megapixel 3-Camera System, 150Mpx Full Dome Capture, HDR, LED Flash Calibrated Spherical Image, 360° x 300°

• Thermal Camera: FLIR Technology Based Long Wave Infrared Camera Thermal Panoramic Image, 360° x 70°

• Measurement Speed: < 3 min for Complete Full Dome Scan, Spherical Image & Thermal Image

• 3D Point Accuracy: 6mm @ 10m / 8mm @ 20m

• Robustness: Designed for Indoor and Outdoor Use

• Operating Temperature: +5 to + 40° C

• Dust/Humidity: Solid Particle/Liquid Ingress Protection IP54 (IEC 60529)

Download Data Sheet

Download Data Sheet
