BLK360 Weekly Rental

$790.00$2,370.00

Clear

Description

Do you want to test the Leica BLK360? Or do you need the scanner for just a few projects? Simply rent the BLK360 from RPG.

The BLK360 allows you to capture reality at the push of a button. The BLK360 imaging laser scanner is the result of uncompromising dedication to a minimalist aesthetic and the simplification of reality capture and features the newest, integrated thermal camera technology. Its shell is comprised of sleek, matte black anodized aluminum. A focus on premium materials was adhered to throughout the project. The mirror is comprised of gold coated, polished titanium. The BLK360 is completely wireless. Data is transferred via WiFi and powered by a rechargeable lithium ion battery.

The BLK360 delivers one-button scanning in a simple and elegant package of uncompromising quality. New features such as thermal imaging bring a whole new dimension to your data while the miniaturized package allows you to bring the power of scanning to projects you never thought possible.

The BLK360 represents the confluence of art and engineering.

• Fast image and point cloud processing

• Lightweight, portable and easy to carry around

• Easy to use one-button scanning

• Enhanced connectivity and collaboration capabilities with cloud sync

• Two-in-one 360º image documentation and laser scan data

• Reality capture data integration with Autodesk’s design solutions

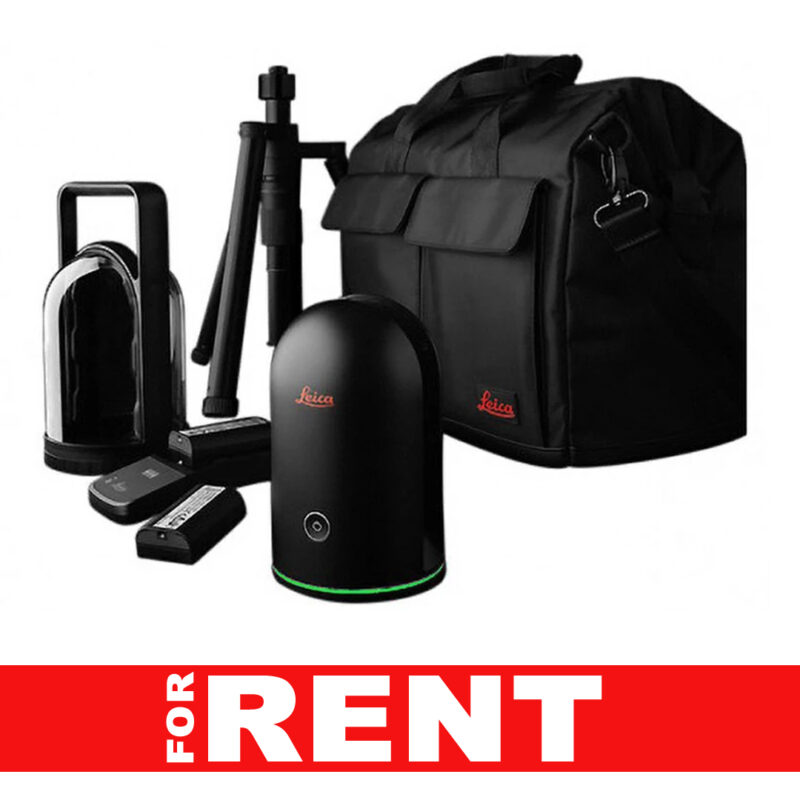

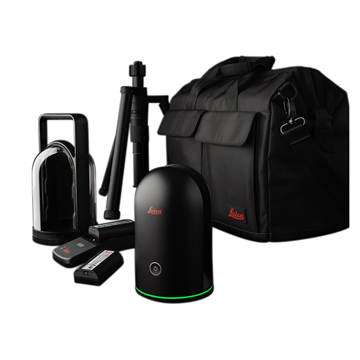

Includes:

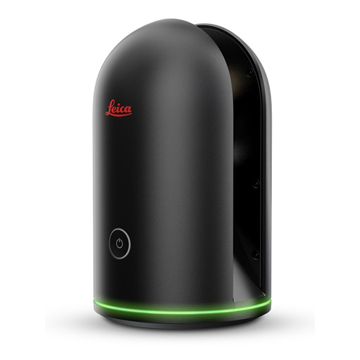

• Leica BLK360

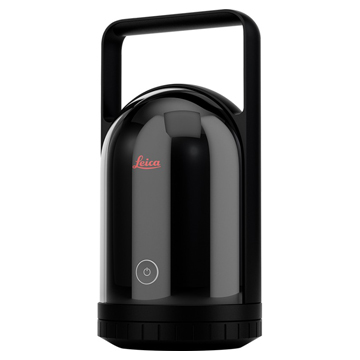

• Transport Shell

• Battery

• Charger

• Global Adapters

• Mission Bag

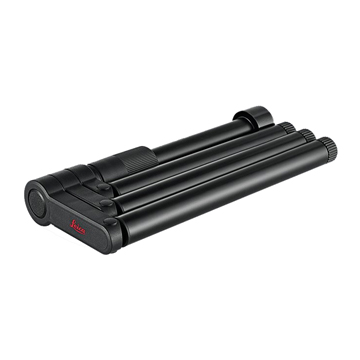

• Tripod

• iPad Pro with preinstalled ReCap Pro

• Insurance; excludes negligence or loss of equipment

• RPG Rental Agreement to follow.

• Rentals are first come first serve. An RPG Representative will confirm rental dates.



360 Imagery

When a scan is initiated, the BLK360’s three 5 megapixel cameras combine to capture a slice of a full dome image. The BLK360 rotates ~33° and the three cameras capture the next slice. These images are stitched together to create a full dome, 360°Hz x 300°V image.

The first step of the scanning process takes about 30 seconds, and the operator can watch as the images are captured via ReCap Mobile Professional or the Leica BLK360 controller app.

Controller

For maximum flexibility, the BLK360 can be completely controlled using an iPAD Pro 12.9″ or 10.5″. No more squinting to read a tiny display or wondering how your imagery and point cloud looks until your get back in the office.

When you initiate a scan from an iPad Pro you can watch as your spherical image is built on the first pass, then preview the completed image when it’s done. If you have a shadow of black spot in your scan, you’ll know in real time, right on the job site.

Memory

The BLK360 comes ready to work, even if you forget to charge your iPAD Pro. In autonomous mode, the BLK360’s on-board memory will store up to 100 full reality-captures: imagery, laser point cloud, and infrared panorama, Whne connected to an iPad Pro, your storage limit is only the amount of memory on your tablet.

Range

Measuring range for any laser scanner depends on having a somewhat reflective surface. The BLK360 is spec’d to work in the range from 60 cm out to 60 meters (2′ – 200′). As a rule of thumb, the laser reflects better off light-colored surfaces. The specifications are based on an “albedo” of 78%, similar to a light-colored wall.

Resolution

The BLK360 can be set to capture more or fewer measurement points based on the requirements of the task at hand.

• Low = 1 measurement every 20 mm (0.8″) in Hz and V

• Medium = 1 measurement every 10 mm (0.4″) in Hz and V

• High = 1 measurement every 5 mm (0.25″) in Hz and V

A high-res scan easily captures between 50 – 80 million points in 3 minutes and be over 1 GB.



Call an RPG Representative at (800) 521-6319 for custom rental periods or more information.

Additional information

Weight35 lbs
Dimensions32 × 23 × 20 in
Rental Duration

, ,

SKU

Download Data Sheet

Download Data Sheet
