BLK360 Monthly Rental

$2,475.00$7,425.00

Clear

Description

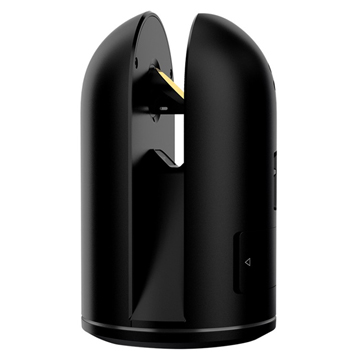

Do you want to test the Leica BLK360 laser scanner? Or do you need the scanner for just a few projects? Simply rent the BLK360 from RPG.

The BLK360 allows you to capture reality at the push of a button. The Leica BLK360 laser scanner is the result of uncompromising dedication to a minimalist aesthetic and the simplification of reality capture and features the newest, integrated thermal camera technology. Its shell is comprised of sleek, matte black anodized aluminum and the mirror is gold coated, polished titanium. Premium materials are an integral part of every BLK360. The BLK360 is completely wireless and data is transferred via WiFi and powered by a rechargeable lithium ion battery.

The BLK360 delivers one-button scanning in a simple and elegant package of uncompromising quality. New features such as thermal imaging bring a whole new dimension to your data while the miniaturized package allows you to bring the power of scanning to projects you never thought possible.

The BLK360 represents the confluence of art and engineering.

• Fast image and point cloud processing

• Lightweight, portable and easy to carry around

• Enhanced connectivity and collaboration capabilities with cloud sync

• Two-in-one 360º image documentation and laser scan data

• Reality capture data integration with Autodesk’s design solutions

Includes:

• Leica BLK360 Laser Scanner

Transport Hood

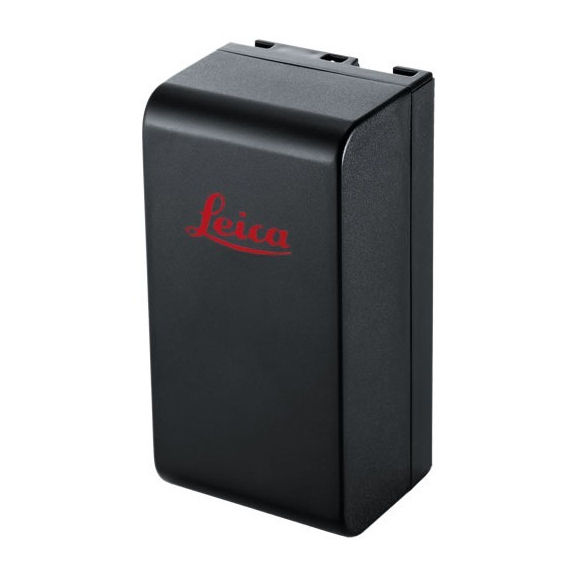

Battery x3

Battery Charger

Mission Bag

Tripod

• iPad Pro with preinstalled ReCap Pro

• Certificate of Insurance is required.

RPG Rental Agreement to follow.

• Rentals are first come, first serve. An RPG Representative will confirm rental date.

360 Imagery

When initiating a scan, the BLK360’s three 5 megapixel cameras combine to capture a slice of a full dome image. The BLK360 rotates ~33° and the three cameras capture the next slice. These images are stitched together to create a full dome, 360°Hz x 300°V image.

Memory

The BLK360 comes ready to work, even if you forget to charge your iPad Pro. In autonomous mode, the BLK360’s onboard memory will store up to 100 full reality-captures: imagery, laser point cloud, and infrared panorama. When connected to an iPad Pro, your storage limit is only the amount of memory on your tablet.

Range

Measuring range for any laser scanner depends on having a somewhat reflective surface. The BLK360 is spec’d to work in the range from 60 cm out to 60 meters (2′ – 200′). As a rule of thumb, the laser reflects better off light-colored surfaces. The specifications are based on an “albedo” of 78%, similar to a light-colored wall.

Resolution

The BLK360 can be set to capture more or fewer measurement points based on the requirements of the task at hand.

• Low = 1 measurement every 20 mm (0.8″) in Hz and V

• Medium = 1 measurement every 10 mm (0.4″) in Hz and V

• High = 1 measurement every 5 mm (0.25″) in Hz and V

A high-res scan easily captures between 50 – 80 million points in 3 minutes and be over 1 GB.

Contact RPG

Give us a call at  (800) 521-6319 to discuss customizable rental periods.

Additional information

Weight35 lbs
Dimensions23 × 18 × 20 in
Rental Duration

, , , , ,

SKU

Specifications

• Housing: Black Anodized Aluminum

• Dimensions: Height: 165 mm, Diameter: 100 mm

• Weight: 1 kg

• Transport Cover: Hood with Integrated Floor Stand

• Mounting Mechanism: Button-Press Quick Release

• Stand-Alone Operation: One-Button Operation

• Remote Operation: iPad app, Apple iPad Pro 12.9”/iOS 10 or later

• Wireless Communication: Integrated Wireless LAN (802.11 b/g/n)

• Internal Memory: Storage for > 100 setups

• Instrument Orientation: Upright and Upside Down

• Battery Type: Internal, Rechargeable Li-Ion Battery (Leica GEB212)

• Capacity: Typically >40 Setups

• Distance Measurement System: High Speed Time of Flight Enhanced by Waveform Digitizing (WFD) Technology

• Laser Class: 1 (in accordance with IEC 60825-1:2014)

• Wavelength: 830 nm

• Field of View: 360° (horizontal) / 300° (vertical)

• Range: min. 0.6 – up to 60 m

• Point Measurement Rate: up to 360’000 pts/sec

• Ranging Accuracy: 4mm @ 10m / 7mm @ 20m

• Measurement Modes: 3 User Selectable Resolution Settings

• Camera System: 15 Megapixel 3-Camera System, 150Mpx Full Dome Capture, HDR, LED Flash Calibrated Spherical Image, 360° x 300°

• Thermal Camera: FLIR Technology Based Long Wave Infrared Camera Thermal Panoramic Image, 360° x 70°

• Measurement Speed: < 3 min for Complete Full Dome Scan, Spherical Image & Thermal Image

• 3D Point Accuracy: 6mm @ 10m / 8mm @ 20m

• Robustness: Designed for Indoor and Outdoor Use

• Operating Temperature: +5 to + 40° C

• Dust/Humidity: Solid Particle/Liquid Ingress Protection IP54 (IEC 60529)
