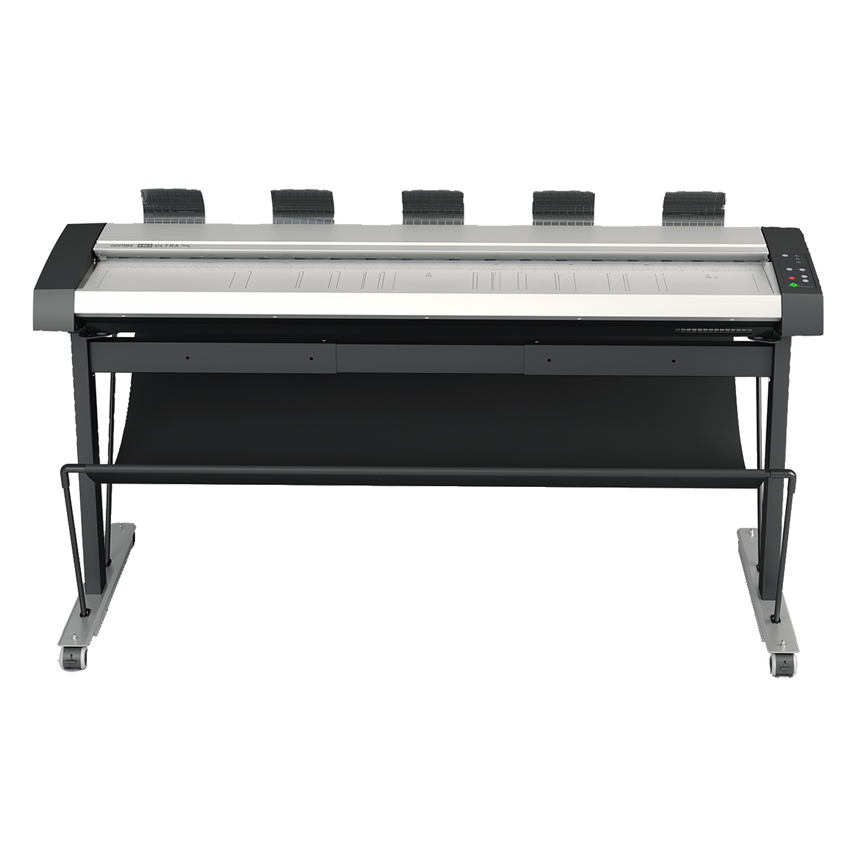

HD Ultra X 6090 60″ Scanner

Call for Price

SKU: 6700G504 Categories: , Tag:


The HD Ultra X 6090 is a new standard for large format scanners.

The HD Ultra X 6090 is the fastest scanner made by Contex. With a top speed of 17.8 ips, you can increase your workflow tempo significantly. You can also switch between three different speed levels directly on the scanner’s intuitive touch panel. If speed doesn’t impress you, look at the width. Three different speed levels at your fingertips on the touch panel makes it easy to adapt the scanner to your workflow and the original’s requirements. With Optimized Thickness Adjustment Control (OTAC), you can easily adjust the scanner to the originals just before scanning.

This is the world’s first 60″ CCD scanner. The size-flexibility, of Nextimage software and the unprecedented scan width gives you the flexibility to be smart and create a more efficient workflow.

Key Features:

• Top speed of 17.8 ips color and mono

• Market leading image quality, CCD technology and 48-bit RAW data capture

• Contex CCD scanners use premium Fujifilm lenses to bring you high-resolution images in the best quality available on the market today

• Save valuable time with the ability to start scanning without the warm-up time

• No need to tell the scanner what to do – it detects the width without your help

The HD Ultra X 6090 is the most efficient and flexible large format scanner on the market. Especially for high-pace environments with the need of scans in the highest possible quality. Therefore, it is great for copy shops which make a living of delivering a great product in short time. But really, it can do almost anything.

Contex True Size Detection

HD Ultra X 6090 finds the paper width as it scans. Stop wasting time. No shoe shine just instant width detection. Easily feed the document into the scanner and no more moving the document backwards and forwards. Just load and scan!

Floor stand not included. Contex HD Ultra X 6000 TAA (Trade Agreements Act) compliant models are available.

Additional information

Weight 173.8 lbs
Dimensions 71 × 21 × 11 in

Download Data Sheet

Download Data Sheet


  • Scanning Speed (200 dpi RGB color): 17.8 ips
  • Accuracy: 0, 1% +/- 1 pixel
  • Color Space: Adobe RGB, Device RGB, RAW RGB, sRGB
  • Connectivity: USB 3, Ethernet
  • Energy Star Compliant: Yes
  • File Formats: TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, multi-page PDF and others
  • Maximum Media Thickness: 0.6” (15 mm)
  • Maximum Media Width: 61.8” (1570 mm)
  • Maximum Resolution: 9600 dpi
  • Maximum Scan Width: 60” (1524 mm)
  • Operating System: 64-bit Windows OS
  • Optical Resolution: 1200 dpi
  • Productivity (Batch scanning Arch E-size, RGB Color, 200 dpi for 60 minutes): 866 documents/hour
  • Technology: CCD
  • Touchscreen: 21.5” Multi-Touch Widescreen, Full HD TFT LCD, 1920×1080 dpi
