LINO L2

$205.00$260.00

Clear
SKU: 864413 / 848435 Categories: , Tags: ,

Description

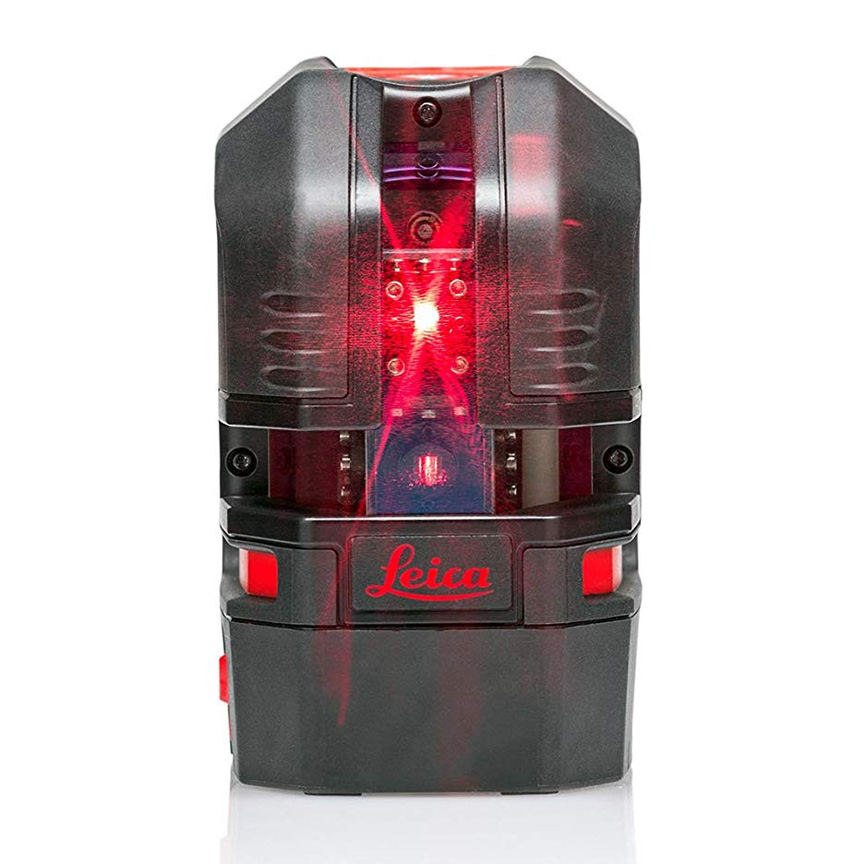

Achieve exact and quick projection of horizontal and vertical lines with the LINO L2.

The high-precision optics of the Leica LINO L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

Self-Leveling. The LINO L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

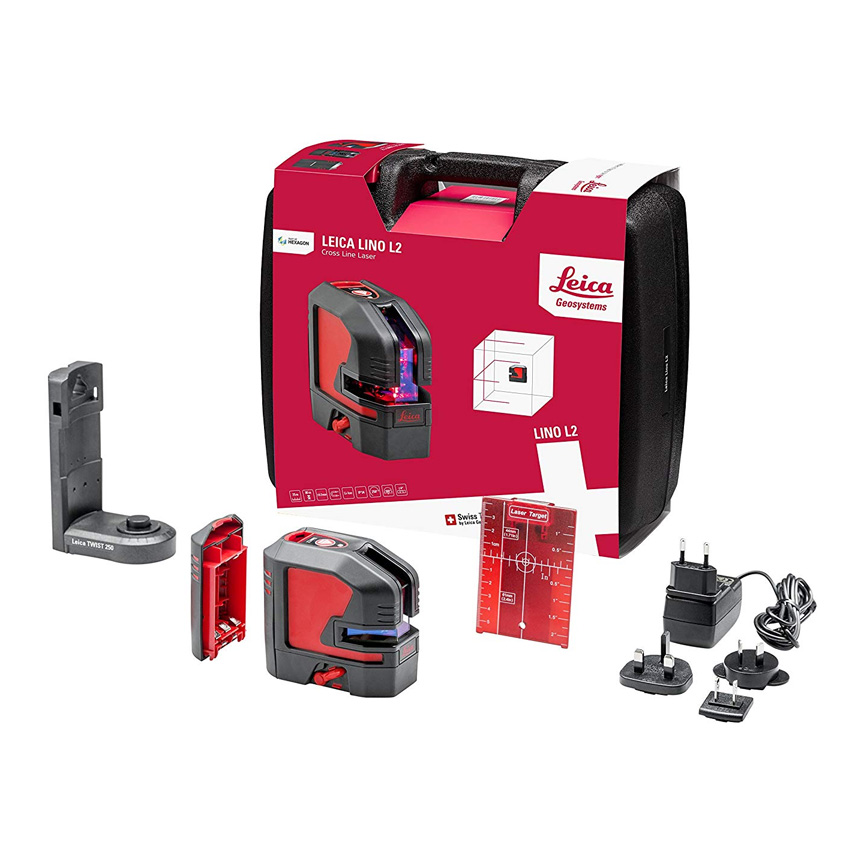

Smart Adapters. Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

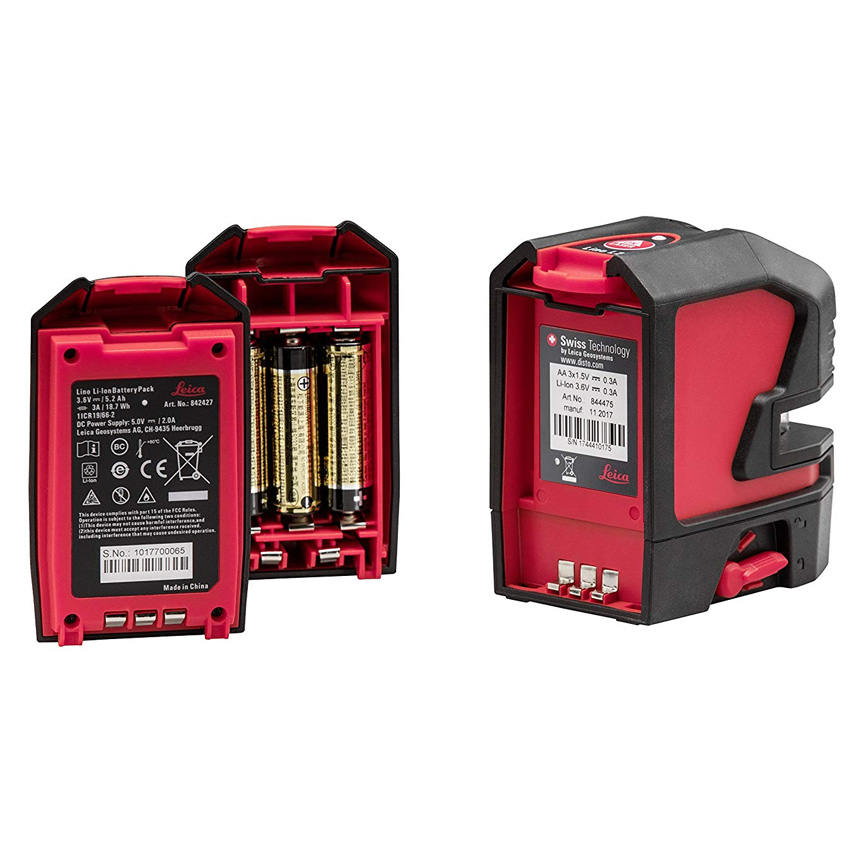

Triple Power Concept. The LINO L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

Rugged Design. The L2 is dust and spray water protected to IP54 standards. This makes it a rugged instrument suitable for all your jobs.

Additional information

Weight25 lbs
Dimensions24 × 18 × 18 in
Option

Advanced Kit, Starter Kit

Specifications

  • Range: up to 25 m depending on lighting conditions
  • Range with Laser Receiver: up to 80 m depending on lighting conditions
  • Leveling Accuracy: ± 0.2 mm / m
  • Self-Leveling Range: ± 4 °
  • Self-Leveling Time: < 3 s
  • Number of Laser Lines: 2
  • Beam Direction: vertical, horizontal
  • Laser Line Width at 5m: < 2 mm
  • Laser Type: 635 nm / class 2 (red)
  • Battery Type: Li-Ion rechargeable (or AA 3 x 1.5 V)
  • Operating Time: up to 44 h (Li-Ion) depending on laser mode
  • Temperature Range Storage: -25 to 70°C (-13 to 158°F)
  • Temperature Range Operation: -10 to 50°C (14 to 122°F)
  • Protection Class: IP54
  • Tripod Thread LINO: 1/4″
  • Tripod Thread Adapter: 1/4″ + 5/8″

Download Data Sheet

Download Data Sheet
