The LINO L2P5 is an all-in-one cross line and point laser tool.

The Leica LINO L2P5 is a a self-leveling cross-line and point laser. The L2P5 is ideal for alignment tasks such as tiling, dry-walling, partitioning and electrical installations as well as plumb point projection, setting out or transferring measured points.

Leica optics enable the LINO L2P5 to project very bright and clearly visible laser lines and dots. Depending on the lighting conditions, the working range is up to 25 meters. This range can be easily extended up to 80 meters by using the laser receiver.

Your L2P5 laser has a triple power concept. It runs with Li-Ion batteries for up to 44 hours on one charge. It can also be powered by alkaline batteries or its charger.

Magnetic Positioning

This two-in-one laser level has magnetic adapters which allow you to position the instrument quickly and with absolute precision. You can easily attach it within U-profiles, to edges, or any magnetic surfaces.


The Leica L2P5 is a self-leveling cross and line laser. This means it automatically adjusts its positioning up to ± 4° when slightly out of level without any manual alignment.

Rugged Design

The Leica Lino L2P5 is designed and built to support today’s jobsite conditions. It is dust and spray water protected to IP54 standards.

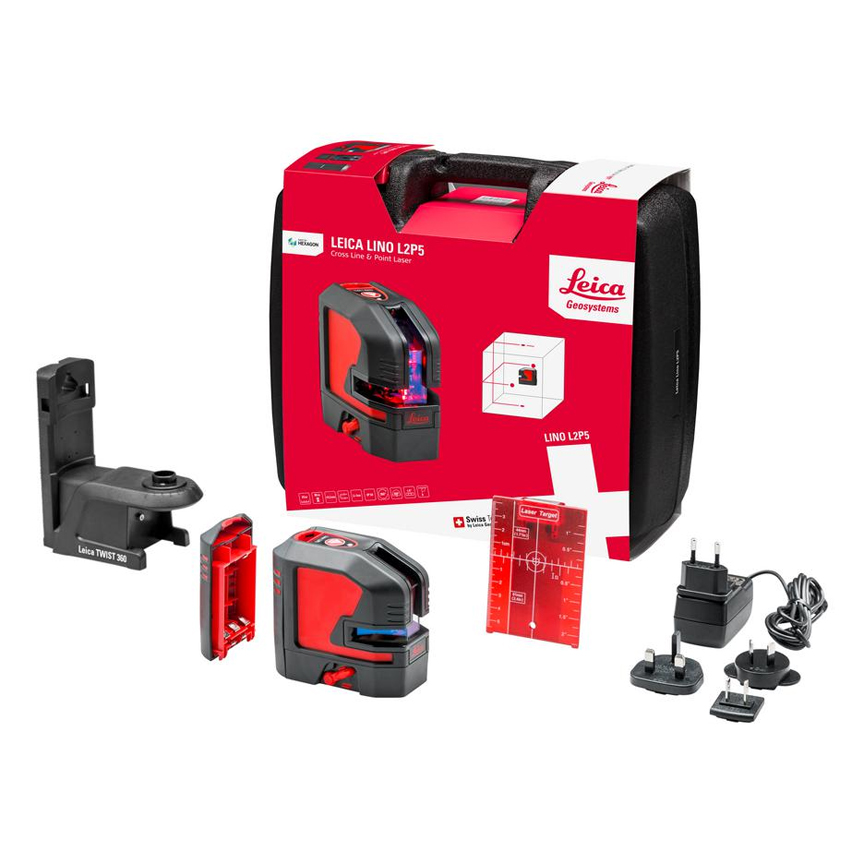

What’s Included:

• Leica LINO L2P5

• Twist 250

• UAL 130 Wall Mount Clamp

• Hard Case

• Li-Ion Battery & Charger

• Alkaline Ray

• Target Plate

Additional information

Weight25 lbs
Dimensions24 × 18 × 18 in


  • Range: up to 25 m depending on lighting conditions
  • Range with Laser Receiver: up to 80 m depending on lighting conditions
  • Levelling Accuracy: ± 0.2 mm / m
  • Self-Leveling Range: ± 4 °
  • Self-Levelling Time: < 3 s
  • Number of Laser Dots: 4
  • Number of Laser Lines: 2
  • Beam Direction: vertical, horizontal, up, down, right, left
  • Dot Accuracy: ± 0.2 mm / m
  • Laser Line Width at 5m: < 2 mm
  • Laser Type: 635 nm / class 2 (red)
  • Battery Type: Li-Ion rechargeable (or AA 3 x 1.5 V)
  • Operating Time: up to 44 hours (Li-Ion) depending on laser mode
  • Temperature Range Storage: -25 to 70°C (-13 to 158°F)
  • Temperature Range Operation: -10 to 50°C (14 to 122°F)
  • Protection class: IP54
  • Dimensions: 110 x 60 x 100 mm
  • Tripod Thread LINO: 1/4″
