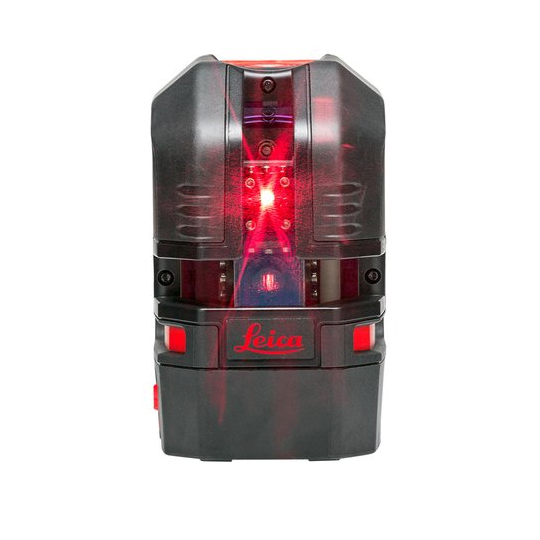

Achieve precise laser projection with the LINO P5.

The Leica LINO P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.

Magnetic smart adapters allow you to quickly attach your P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.

Self-Leveling. The P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.

Triple Power Concept. The LINO P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.

Rugged Design. The P5 is dust and spray water protected to IP54 standards. This makes it a tough instrument suitable for all your jobs.

What You Get: Leica LINO P5, Quick Start Guide, TWIST 360 Magnetic Multi-Function Adapter, Rugged Case, 3 AA Batteries, Laser Target, Safety Instructions, Calibration Certificate, and Warranty Card

Additional information

Weight25 lbs
Dimensions24 × 18 × 18 in


  • Range up to 30 m depending on lighting conditions
  • Levelling Accuracy: ± 0.2 mm / m
  • Self-Leveling Range: ± 4 °
  • Self-Leveling Time: < 3 s
  • Number of Laser Dots: 5
  • Beam Direction: up, down, forward, right, left
  • Dot Accuracy: ± 0.2 mm / m
  • Laser Type: 635 nm / class 2 (red)
  • Battery Type: AA 3 x 1.5 V (optional Li-Ion)
  • Operating Time: up to 37 hours (AA) depending on laser mode
  • Temperature Range Storage: -25 to 70°C (-13 to 158°F)
  • Temperature Range Operation: -10 to 50°C (14 to 122°F)
  • Protection Class: IP54
  • Tripod Thread LINO: 1/4″
  • Tripod Thread Adapter: 1/4″ + 5/8″

Download Data Sheet

Download Data Sheet
