BLK3D Imager

$4,800.00$6,258.00

Clear

Description

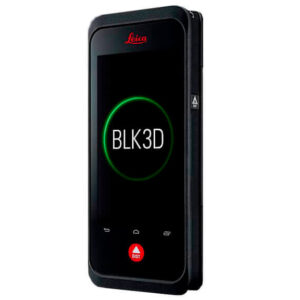

The Leica BLK3D Imager is a real-time, in-picture 3D measurement solution.

The BLK3D combines a calibrated stereo camera, measurement sensors, software, and on-device edge detection capabilities to make in-picture measurements with professional-grade accuracy. Every image captured is a complete and precise 3D measurement record.

The BLK3D is designed to make your measurements faster and easier to take within any picture you can capture with the device. It will help you fully document your work, including as-built conditions and project progress.

Take a picture. Measure anything. The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.

New dimensions for 2D pictures. The BLK3D creates images that contain precise three-dimensional measurements.

The art of photogrammetry. Simplified. Unmatched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.

Progressive project documentation for AEC. Capture critical moments throughout the life of a building.

Access projects. Anywhere, anytime. Measure in your image – on the handheld imager, on the desktop, on-site or in the office.

Object detection and snapping. Auto-Snapping uses computer vision technologies to select the right points for your measurements.

• Working with digital floor plans. Create floor plans and import existing ones. Add measurable images. Document construction progress with multiple images over time.

• Store. Organize. Share. Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.

In The Box:

• Leica BLK3D Portable Photogrammetry Tool

• Battery

• AC Power Adapter

• Neck Strap

Additional information

Weight5.52 lbs
Dimensions7.11 × 3.06 × 1.07 in
Software

1 yr Desktop Base Subscription, 1 yr Desktop Base Subscription + Mobile Sketch and Doc, 1 yr Desktop Base Subscription + Mobile Sketch and Doc + Desktop Publisher, 1 yr Desktop Base Subscription + Mobile Sketch and Doc + Mobile Publisher, Device Only

Warranty

1 Year Warranty Extension, 2 Year Warranty Extension, No Warranty

Specifications

    • Dimensions (H x W x D): 7.11 x 3.06 x 1.07 in
    • Weight (with rechargeable battery): 17 oz
    • Temperature Range:
      • Storage: -13 to 140 °F
      • Operation: 14 to 122 °F
    • Charging: 32 to 104 °F
    • Tripod Adapter: Supports 1/4-20 UNC screw adapters

    Technology

    • Operating System: Android 7.1.2 (Nougat)
    • Processor (with integrated GPU): Snapdragon 820E QuadCore (2.35 GHz)
    • RAM Memory: 4 GB
    • Real-Time Processor: STM32F446
    • Screen: 5.0” IPS, HD 720×1280 LCD capacitive multi-touch screen, chemically strengthened, brightness: 450 cd/m2
    • Stereo Camera:
      • Pixels: 2 x 10 MP (15.8 cm diagonal base line)
      • Field of View: 80°
      • Focal length: 4.0 mm (22 mm in 35 mm equiv. in 1:1)
      • Aperture: F3.0
    • EDM camera:
      • Pixels: 2 MP
      • Field of View: 14°
    • I/O:
      • USB Type-C 1.0 for data transfer and charging (water resistant)
      • Integrated Speaker and Microphone
    • Keyboard:
      • Three Physical Buttons (Power, Laser/Photo Capture, Photo Capture)
      • Four Touch Buttons (Back, Home, Recents, Laser/Photo Capture)
    • Additional Sensors: Compass, 3D Accelerometer and 3D Gyroscope
    • Laser Class: 2
    • Laser Type: 655 nm, 0.95 mW

    Storage

    • Internal Storage: 64 GB (equals 14000 single-shot or 5000 multi-shot 3D images)

    Communication

    • Bluetooth® Smart:
      • Bluetooth v4.1 and v2.1, Radiated Power: 1.78 mW (BLE)
      • Radiated Power: 10.00 mW (BT classic)
      • Frequency: 2402-2480 MHz
    • Wireless LAN:
      • Standard: 802.11 b/g/n, Radiated power: 6.31 mW
      • Frequency: 2412-2472 to 2412-2462 MHz
    • GPS: A-GPS and GLONASS

    Power Management

    • Battery: Rechargable Battery Pack Li-ion, (3.80 V, 3880 mAh, 14.7 Wh)F
    • Power management:
      • AC adapter (input: 100-240 V AC)
      • External Charger (input: 100-240 V AC) (optional)
    • Charge Time:
      • < 3.5 h (with AC adaptor)
      • < 5h (with optional external charger)
    • Operating time:
      • Typical capture: 4h / 220 multi-shot captures 1
      • Continuous capture: 2.5 h /1000 single shot captures1
      • Laser measurements: 6.5 h / 9500 laser measurements
      • Auto power off after 3 h in sleep mode

    3D Image Distance Measurement

    • 2D In-Picture Accuracy: ± 3 mm (0.12 in)
    • 3D In-Picture Accuracy: ± 6 mm (0.24 in)

    Laser Distance Measurement

    • Accuracy with Favorable Conditions: ± 1.0 mm (0.04 in)6
    • Accuracy with Unfavorable Conditions: ± 2.0 mm (0.08 in)6
    • Range with Favorable Conditions: 250 m (820 ft)
    • Range with Unfavorable Conditions: 120 m (394 ft)
    • Smallest Unit Displayed: 0.1 mm (1/32 in)
    • X-Range Power Technology™: Yes
    • Ø Laser Point at Distances: 6 / 30 / 60 mm (10 / 50 / 100 m)

    Tilt Measurement

    • Measuring Tolerance to Laser Beam: ± 0.2°
    • Measuring Tolerance to Housing: ± 0.2°
    • Range: 360°

    P2P Measurement with DST 360 (Optional)

    • Working Range Vertical Sensor: -64° to > 90°
    • Accuracy Vertical Sensor up to: ± 0.1°
    • Working range horizontal sensor: 360°
    • Accuracy Horizontal Sensor up to: ± 0.1°
    • Tolerance P2P Function at Distances (combination of sensors and distance measuring) approx.: ± 2 mm / 2 m, ± 5 mm / 5 m, ± 10 mm /10 m°
    • Levelling Range: ± 5°

    Software Options Overview

    • BLK3D Mobile (included): Reality Capture, Laser, Organizer, 3D Image Export to PDF and JPG
    • Sketch & Document Option (optional): Sketch Plan, P2P Measure, Smart Room, Plan export to PDF, JPG, DXF and DWG (2D/3D/raw)
    • BLK3D Desktop Base (optional): Organizer, Measure, working with plans
    • 3D Model Option (optional): 3D Modelling on 3D Images
    • Minimum System Requirements: Windows 8.1, 10 with 64-bit; 6 GB RAM
