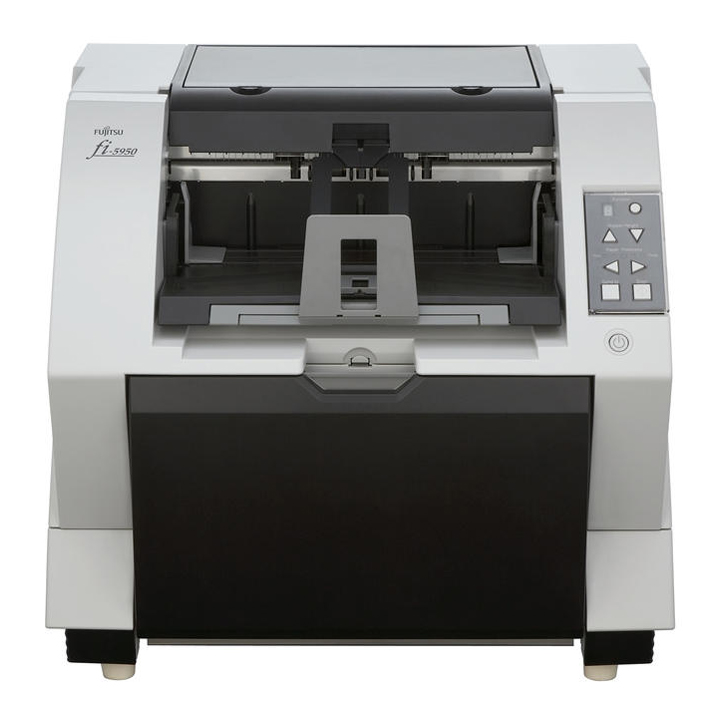

fi-5950 Scanner


SKU: PA03450-B565 Categories: , Tag:


The fi-5950 is a high-volume, production scanner.

Every second counts and the fi-5950 features ensure increased scanning efficiency and maximum productivity. Features include:

• Fast, 135 ppm (simplex) / 270 ipm (duplex) scanning in monochrome, grayscale or color at 200 or 300 dpi for increased OCR accuracy (letter, landscape)

• Advanced Triple Ultrasonic Double Feed Detection with Intelligent MultiFeed Function (iMFF) and retain image feature

• Large 500 page automatic document feeder and active stacking to keep documents neat and orderly in the exit tray

• High speed USB 2.0 and SCSI connectivity as well as interoperability with hundreds of complementary document scanning software applications

• Scanner Central Admin Suite

• Comes with 2D Barcode for PaperStream

• Comes with PaperStream IP (TWAIN/ISIS), PaperStream Capture

Scanning Performance

Based on the foundation that made Fujitsu an industry leader in mid-volume production scanning, the fi-5950 continues this legacy of delivering fast scanning speeds, high reliability and incorporates features that help provide the ultimate in productivity.

• Fast start-up speeds. Scanning starts nearly instantaneously

• Dramatically reduced document preparation using PaperStream IP image processing

• Intelligent MultiFeed Function (iMFF) Triple Ultrasonic Double Feed Detection with retain image feature for intentional overlapping items such as stuck-on notes or taped on receipts

• Full rated speeds scanning at higher resolutions up to 300 dpi for enhanced OCR accuracy

• Industry proven rugged design with up to 100,000 sheet daily duty cycle

• Quick scanning speeds of 135 ppm (simplex) / 270 ipm (duplex)

• Valuable bundled software including PaperStream Capture batch scanning with Scan to Microsoft SharePoint Server, QuickSan Pro (Trial) and PaperStream IP (TWAIN/ISIS)

• Dual-CCD scanning arrays for excellent image quality

• Automatic scanner calibration to maintain premium image quality and eliminate degradation

• Large 500 page automatic document input feeder with active stacker to keep documents neat and orderly in the output tray

High-Impact Scanning, Low Environmental Impact

In keeping with Fujitsu’s long-standing commitment to safeguarding the environment, the fi-5950 is the latest business scanner to adhere to strictest ecological regulations throughout the entire manufacturing process. The design and manufacture of the fi-5950 meet Energy Star’s energy consumption requirements and the European Union’s Reduction of Hazardous Substances and Volatile Organic Compounds regulations.

Additional information

Weight20.4 lbs
Dimensions14.37 × 19.68 × 11.85 in


• Scanner Type: ADF (Automatic Document Feeder) / Manual Feed, Duplex

• Scanning Speed (A4 Portrait; Color/Grayscale/Monochrome):

• Simplex: 105 ppm (200/300 dpi)

• Duplex: 210 ipm (200/300 dpi)

• Image Sensor: Color CCD x 2 (front x 1, back x 1)

• Light Source: White cold cathode discharge lamp x 4 (front x 2, back x 2)

• Optical Resolution: 600 dpi

• Output Resolution (Color/Grayscale/Monochrome): 50 to 600 dpi (adjustable by 1 dpi increments) 1,200 dpi (driver)

• Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

• Background Colors: White/Black (selectable)

• Document Size: 2” x 3” to 12” x17”

• Paper Weight (Thickness): 0.04 to 0.25 mm (31 to 209 g/m², or 8.3 to 56 lb)

• Paper Chute Capacity (A4 Landscape): 500 sheets (A4 80 g/m² or Letter 20 lb)

• Typical Daily Duty Cycle: 100,000 sheets

• Multifeed Detection: Overlap detection (Ultrasonic sensor), Length detection

• Interface: Ultra SCSI, USB 2.0 / USB 1.1

• Power Requirement: AC 100 to 240 V ± 10%

• Power Consumption (Operating Mode): 250 W or less

• Power Consumption (Sleep Mode): 3.2 W or less

• Power Consumption (Auto Standby “Off” Mode): 0.5 W or less

Download Data Sheet

Download Data Sheet
